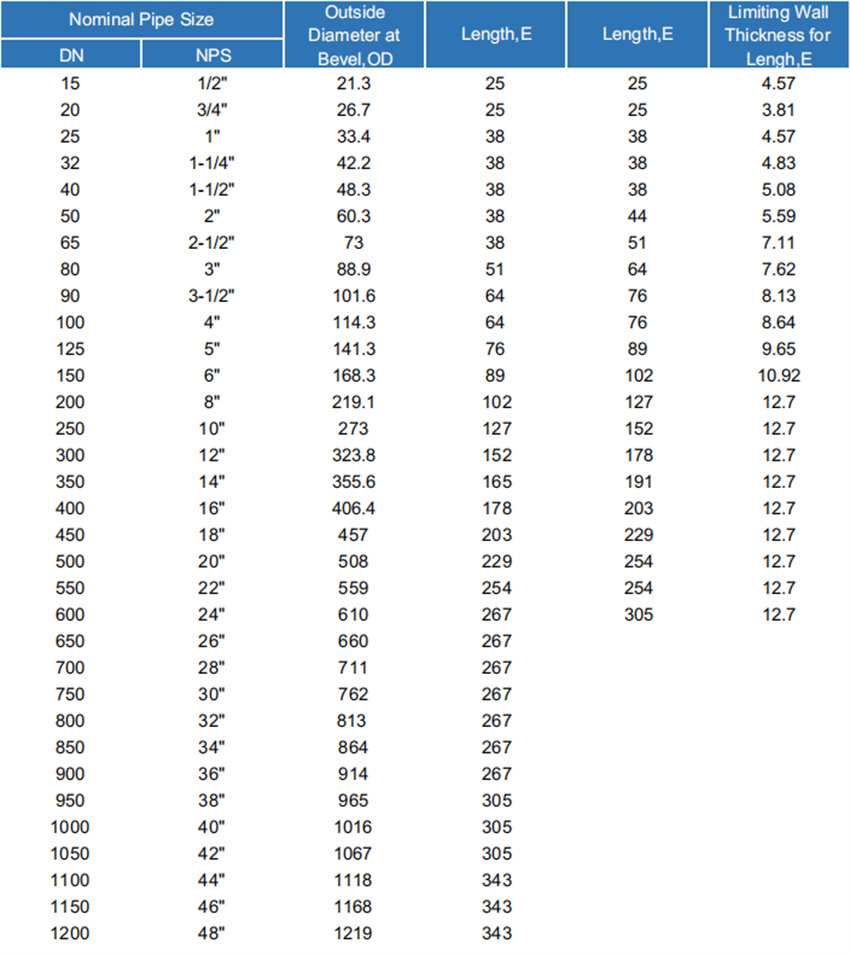

ASME/ANSI B16.9

Note:

•All dimensions are in millimeters

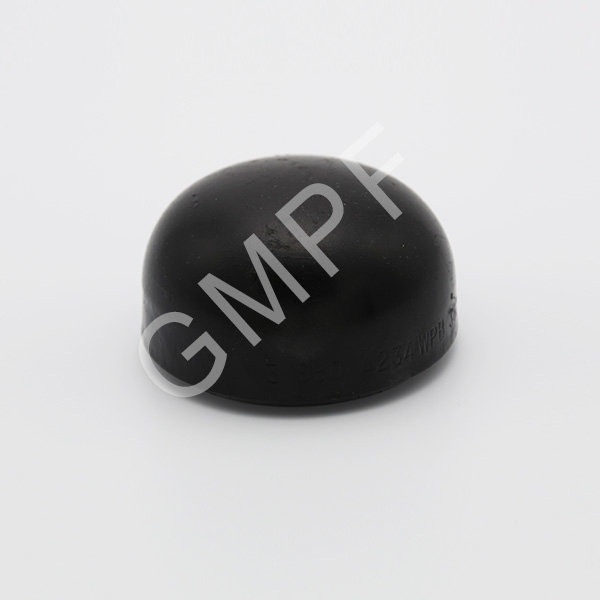

•The shape of these caps are ellipsoidal

•Length E applies for thickness not exceeding that given in column"Limiting Wall Thickness for Length,E."

•Length E,applies for thickness greater than that given in column”Limiting Wall Thickness" for NPS 24 and smaller. For NPS 26 and larger,Length E, shall be by agreement between the manufacturer and purchaser.
